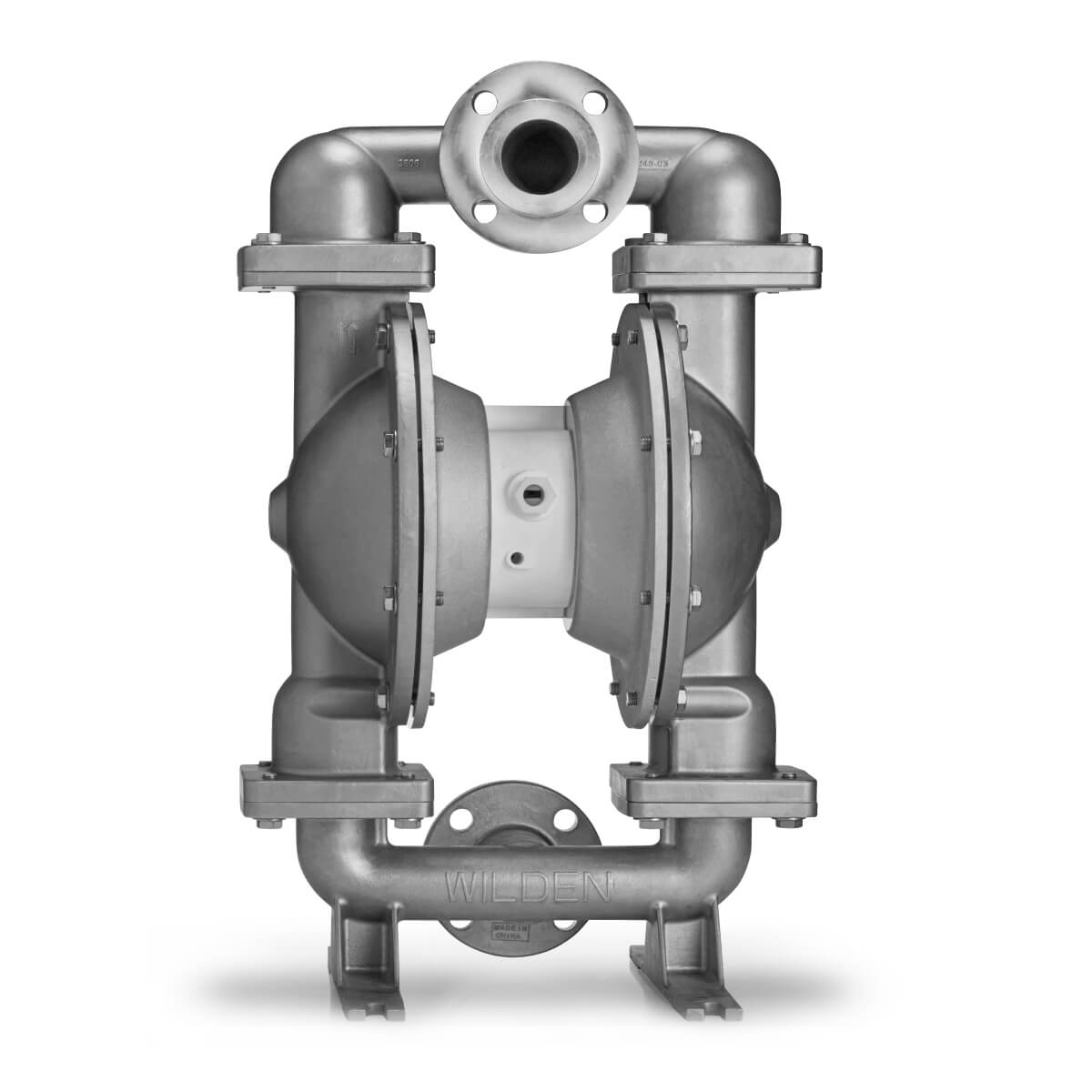

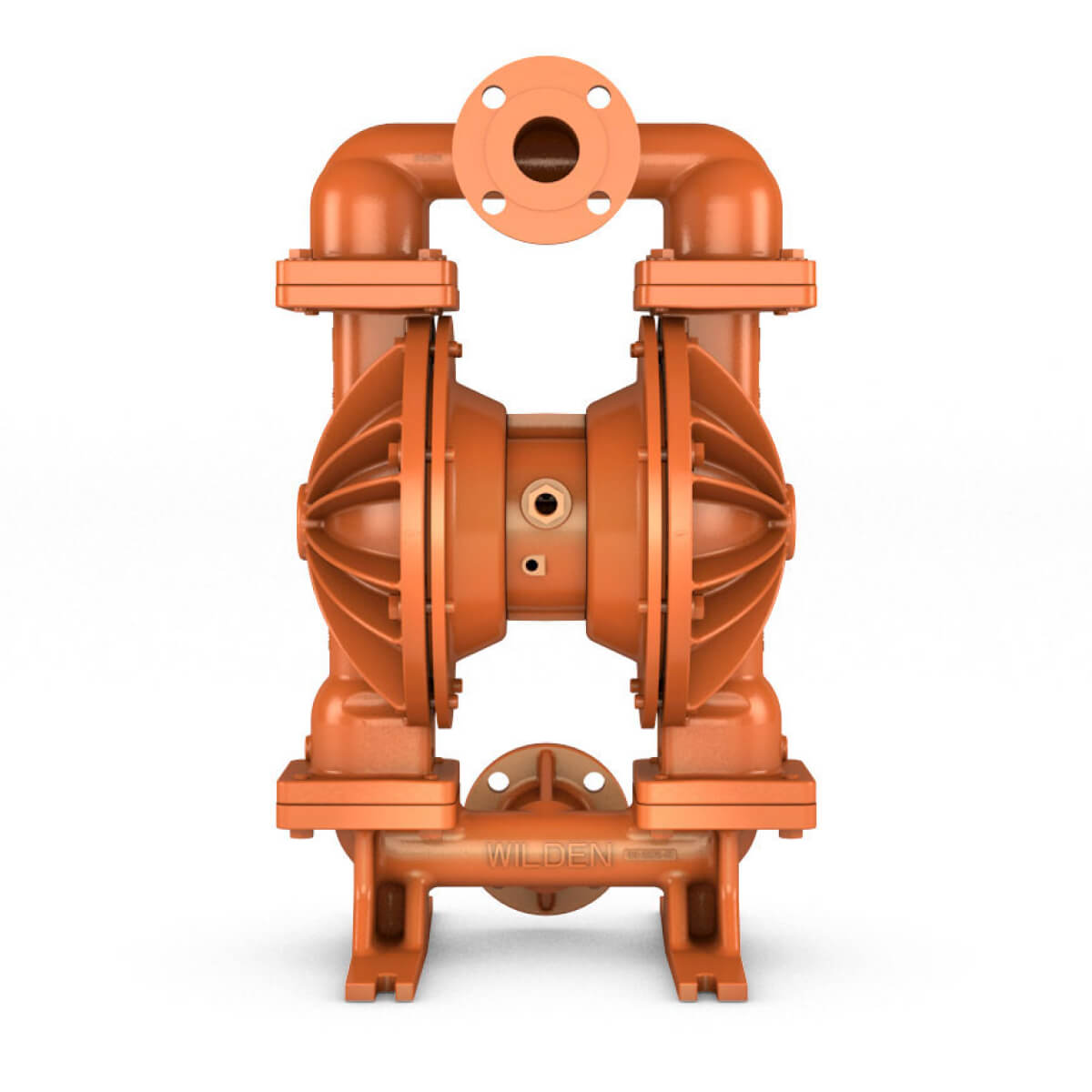

51 mm (2") Pro-Flo® Series Bolted Metal AODD Pump
P820/P830

AIR INLET

1/2" FNPT

LIQUID INLET

51 mm (2")

LIQUID DISCHARGE

51 mm (2")

CONNECTION TYPE

NPT/BSPT (Threaded)

DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY

Rubber – 7.4 m (24.3') Dry, 9.0 m (29.5') Wet

EZ-Install TPE – 6.7 m (21.9') Dry, 9.0 m (29.5') Wet

Full-Stroke PTFE – 6.9 m (22.6') Dry, 9.0 m (29.5') Wet

Reduced-Stroke PTFE – 4.6 m (15.1') Dry, 9.0 m (29.5') Wet

MAX FLOW RATE

Rubber – 609 lpm (161 gpm)

EZ-Install TPE – 605 lpm (160 gpm)

Full-Stroke PTFE – 590 lpm (156 gpm)

Reduced-Stroke PTFE – 492 lpm (130 gpm)

MAX PRESSURE

8.6 bar (125 psi)

MAX DIAMETER SOLIDS

6.4 mm (1/4")

DISPLACEMENT PER STROKE *

Rubber –2.8 L (0.74 gal)

EZ-Install TPE – 2.5 L (0.67 gal)

Full-Stroke PTFE – 2.5 L (0.65 gal)

Reduced-Stroke PTFE – 1.7 L (0.46 gal)

^* 1 cycle = 2 strokes
