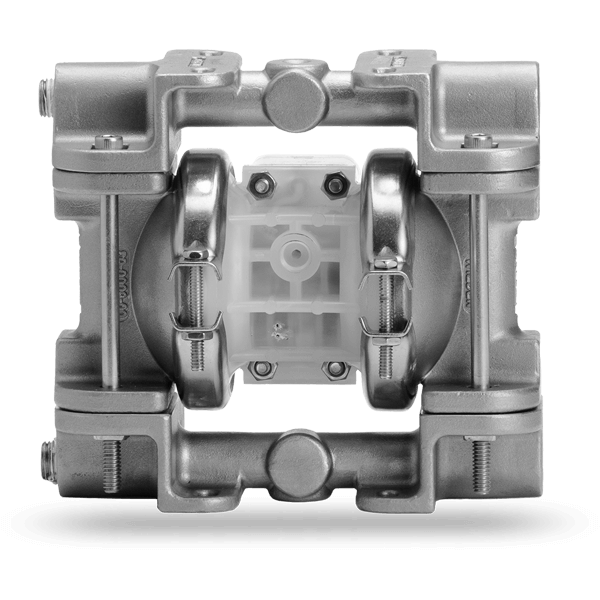

6 mm (1/4") Pro-Flo® Series Clamped Metal Pump AODD
P.025

AIR INLET

1/8" FNPT

LIQUID INLET

6 mm (1/4")

LIQUID DISCHARGE

6 mm (1/4")

CONNECTION TYPE

NPT/BSPT (Threaded)

MAX SUCTION LIFT CAPABILITY

Rubber – 3.3 m (10.8') Dry, 9.3 m (30.6') Wet

TPE – 3.3 m (10.8') Dry, 9.3 m (30.6') Wet

PTFE – 4 m (13') Dry, 9.5 m (31.2') Wet

MAX FLOW RATE

Rubber – 18.9 lpm (5 gpm)

TPE – 18.9 lpm (5 gpm)

PTFE – 18.9 lpm (5 gpm)

MAX PRESSURE

8.6 bar (125 psi)

MAX DIAMETER SOLIDS

0.4 mm (1/64")

DISPLACEMENT PER STROKE *

Rubber – 0.02 L (0.005 gal)

TPE – 0.02 L (0.005 gal)

PTFE – 0.02 L (0.005 gal)

^* 1 cycle = 2 strokes
