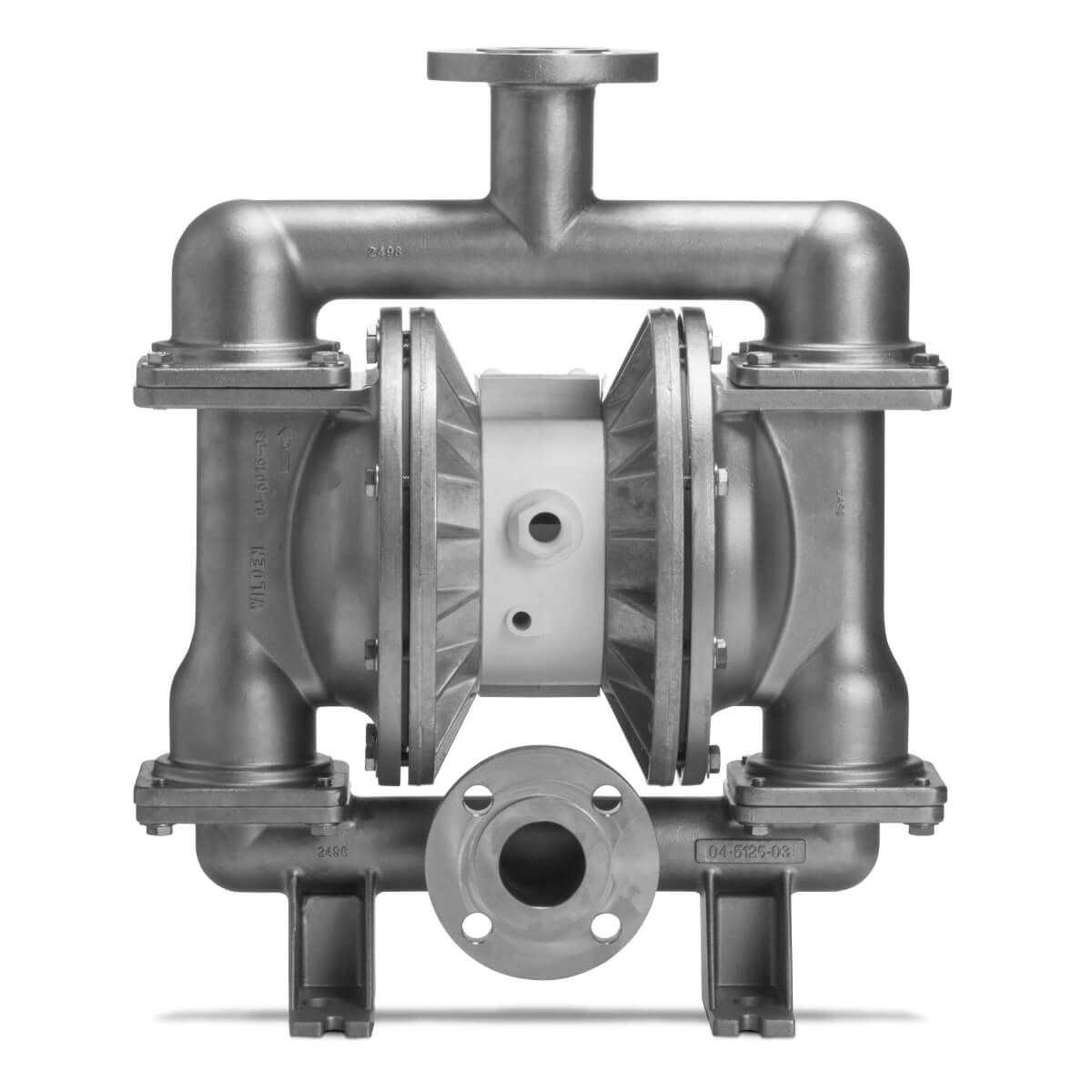

38 mm (1-1/2") Pro-Flo® Series Bolted Metal AODD Pump
P420/P430

AIR INLET

1/2" FNPT

LIQUID INLET

38 mm (1-1/2")

LIQUID DISCHARGE

38 mm (1-1/2")

CONNECTION TYPE

NPT/BSPT (Threaded)

DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY

Rubber – 5.5 m (18.2') Dry, 9.0 m (29.5') Wet

EZ-Install TPE – 4.8 m (15.9') Dry, 9.0 m (29.5') Wet

Full-Stroke PTFE – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet

Reduced-Stroke PTFE – 2.8 m (15.9') Dry, 9.0 m (29.5') Wet

MAX FLOW RATE

Rubber – 492 lpm (130 gpm)

EZ-Install TPE – 492 lpm (130 gpm)

Full-Stroke PTFE – 473 lpm (125 gpm)

Reduced-Stroke PTFE – 341 lpm (90 gpm)

MAX PRESSURE

8.6 bar (125 psi)

MAX DIAMETER SOLIDS

6.4 mm (1/4”)

DISPLACEMENT PER STROKE *

Rubber – 1.2 L (0.32 gal)

TPE – 1.2 L (0.32 gal)

Full-Stroke PTFE – 1.1 L (0.28 gal)

Reduced-Stroke PTFE – 0.53 L (0.14 gal)

^* 1 cycle = 2 strokes
