76 mm (3") Pro-Flo® SHIFT Series Bolted Metal AODD Pump,Pro-Flo® SHIFT Series AODD Pumps,allaoddpumps

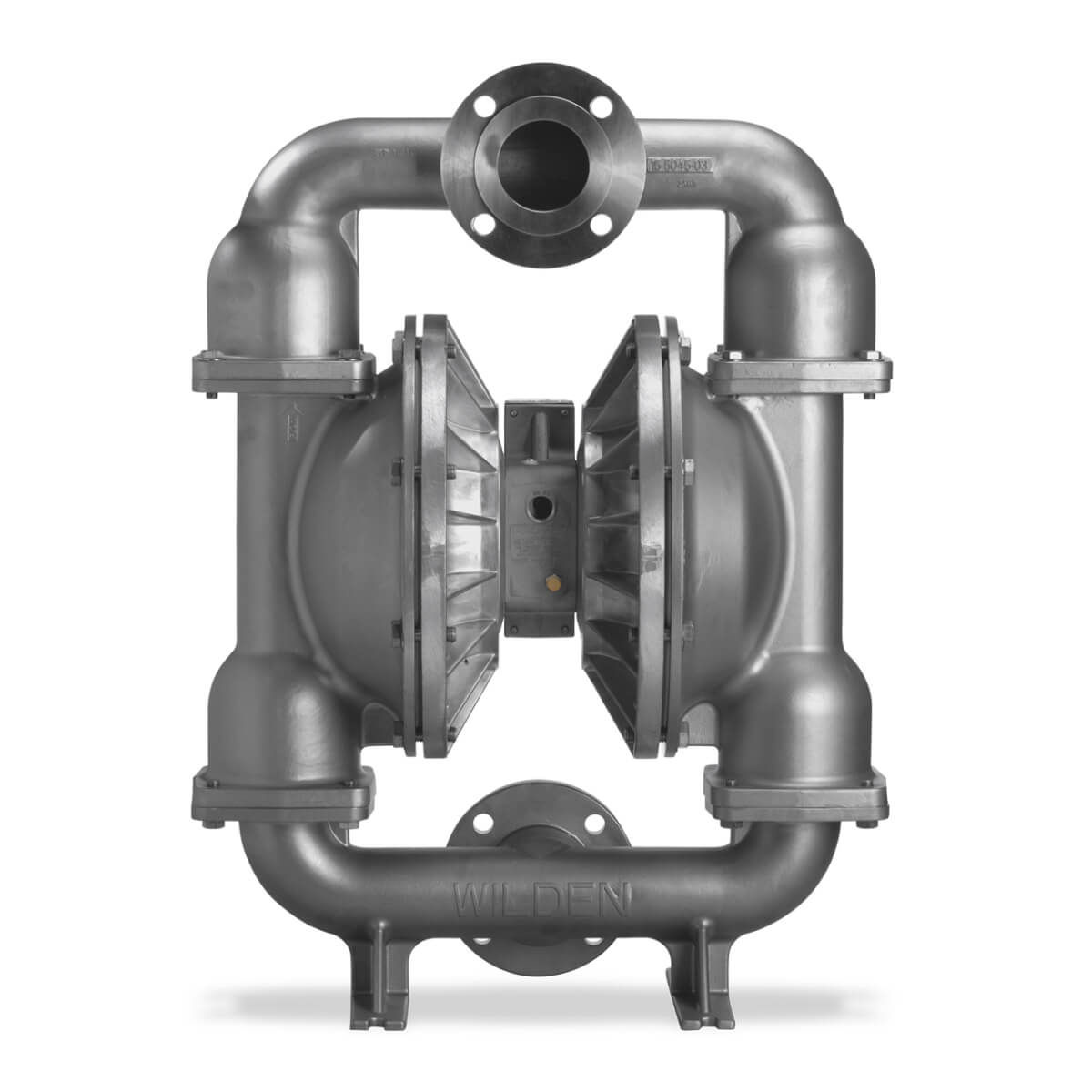

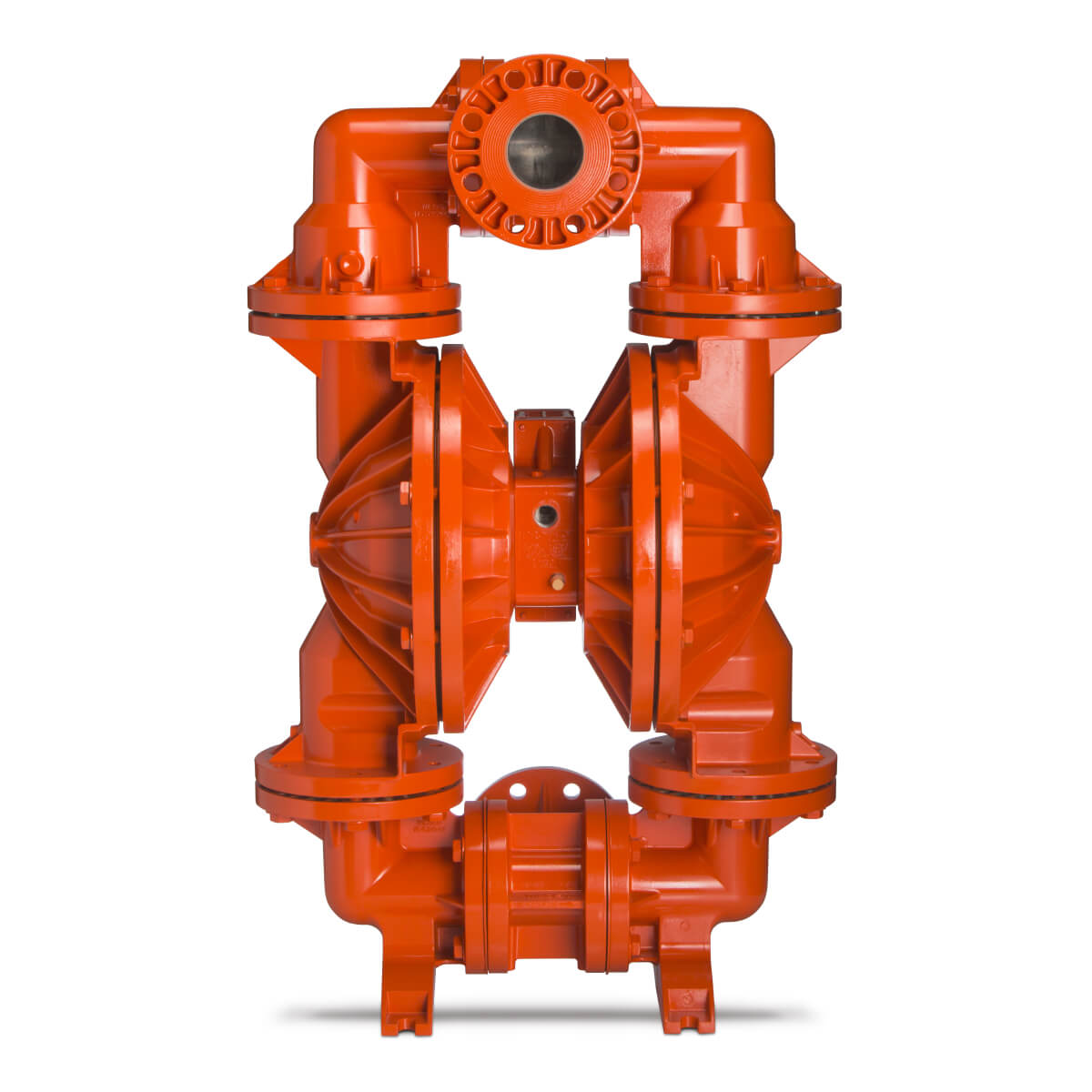

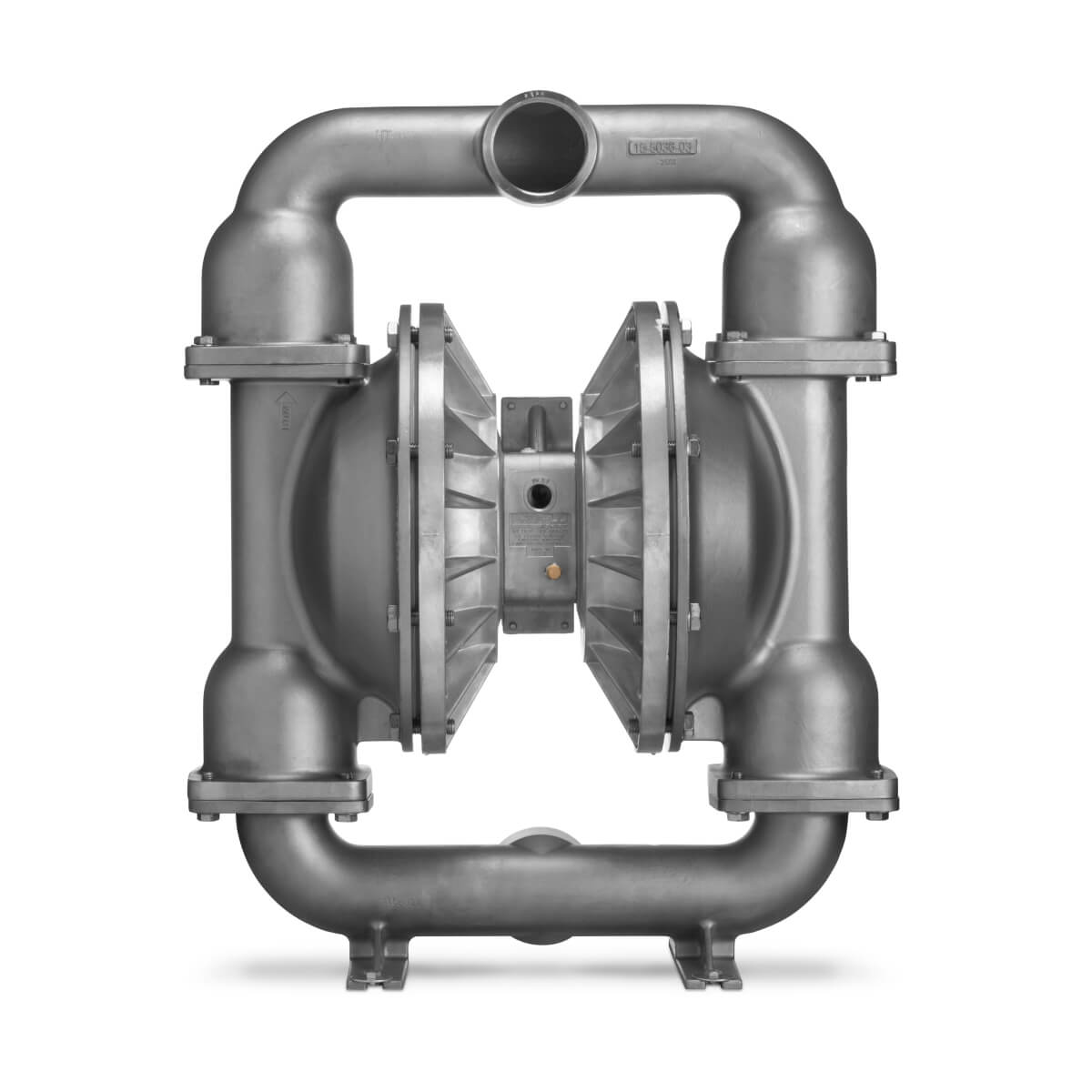

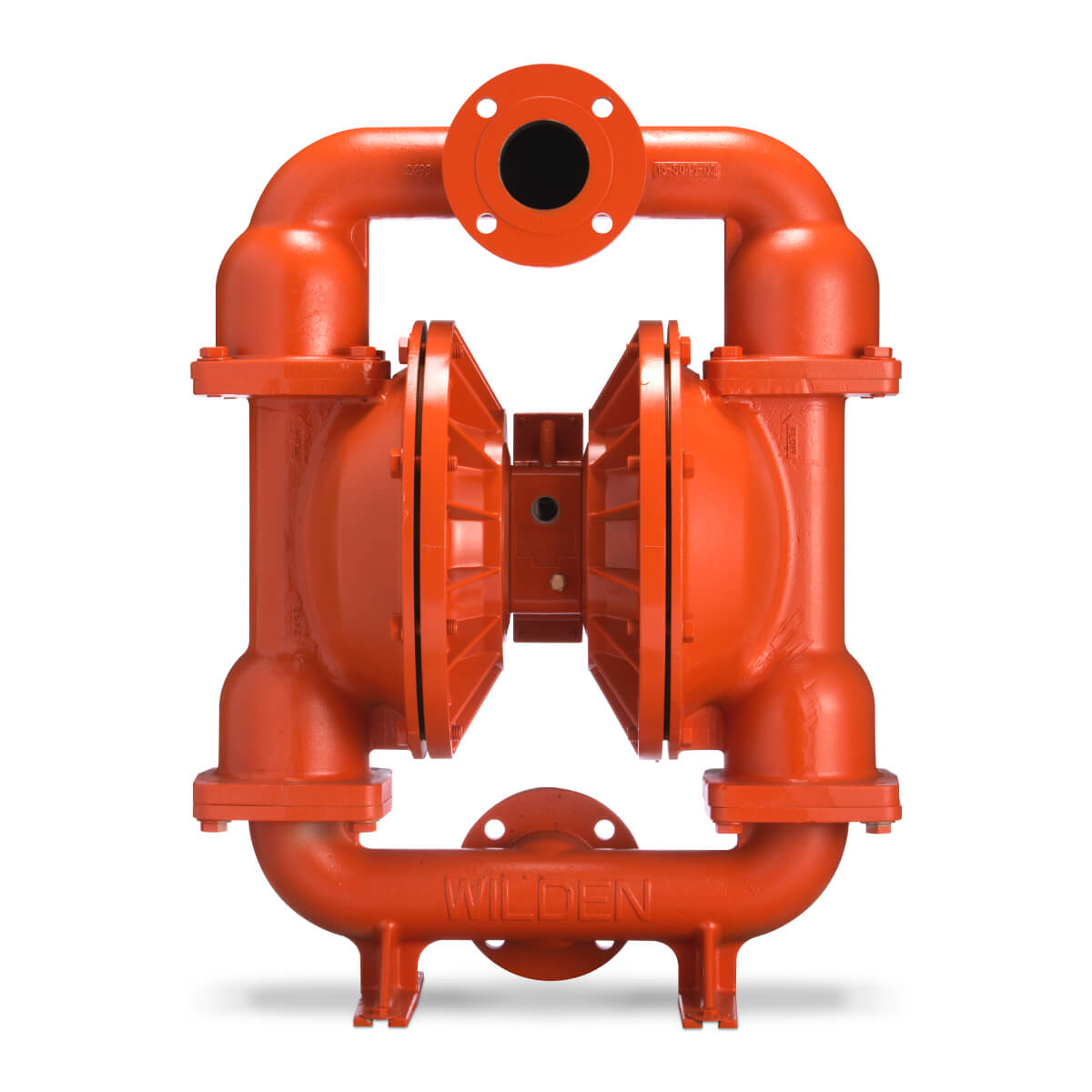

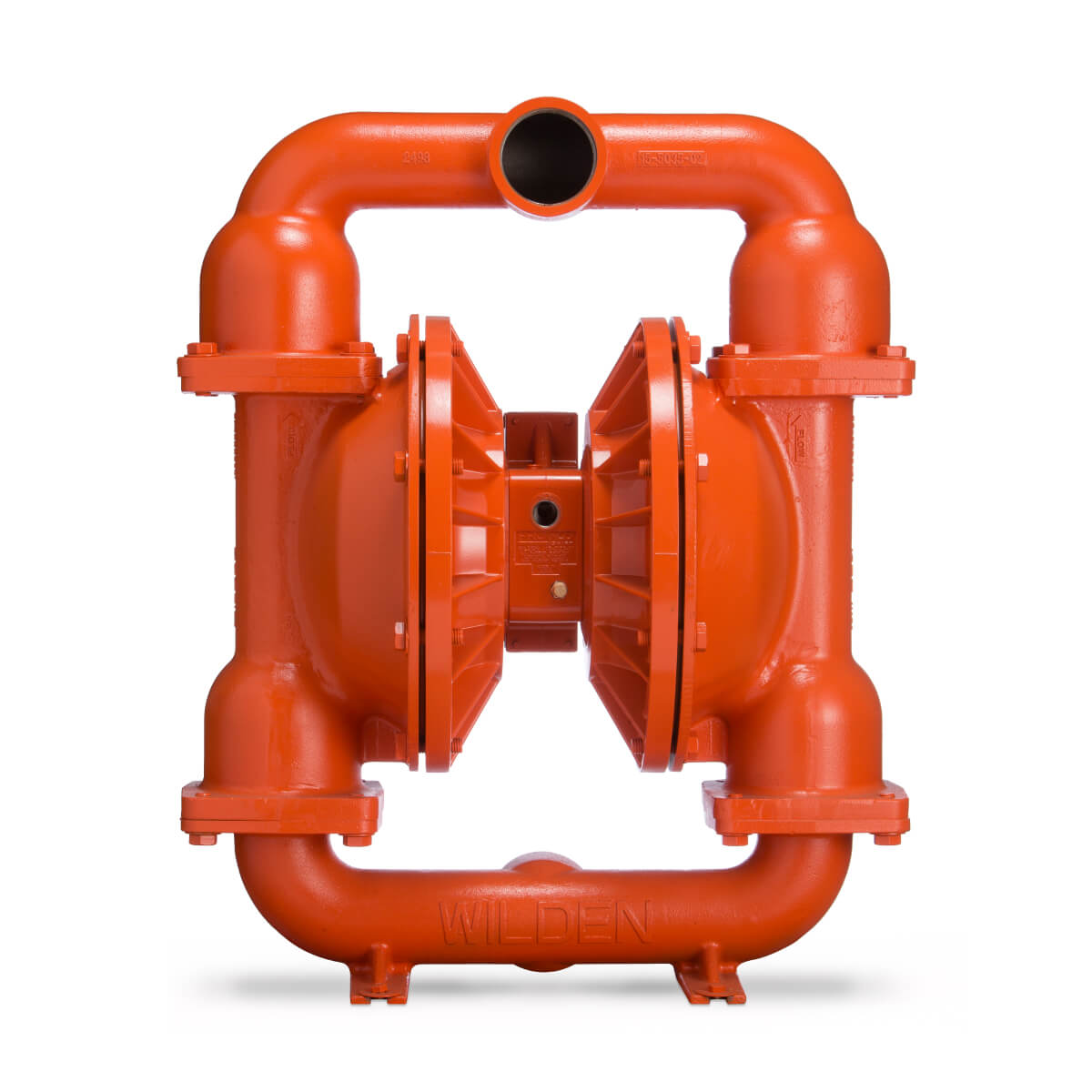

76 mm (3") Pro-Flo® SHIFT Series Bolted Metal AODD Pump
PS1520/PS1530

AIR INLET

3/4" FNPT

LIQUID INLET

76 mm (3")

LIQUID DISCHARGE

76 mm (3")

CONNECTION TYPE

NPT/BSPT (Threaded)

DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY

Rubber – 7.2 m (23.8’) Dry, 9.7 m (31.8’) Wet

EZ-Install TPE – 6.4 m (21.1') Dry, 9.7 m (31.8’) Wet

Full-Stroke PTFE – 6.2 m (20.2') Dry, 8.6 m (28.4') Wet

Full-Stroke PTFE (Ductile Iron) – 5.9 m (19.5') Dry, 9.7 m (31.7') Wet

MAX FLOW RATE

Rubber – 1,026 lpm (271 gpm)

EZ-Install TPE – 1,026 lpm (271 gpm)

Full-Stroke PTFE – 992 lpm (262 gpm)

Full-Stroke PTFE (Ductile Iron) – 874 lpm (231 gpm)

MAX PRESSURE

8.6 bar (125 psi)

MAX DIAMETER SOLIDS

12.7 mm (1/2")

DISPLACEMENT PER STROKE *

Rubber – 5.1 L (1.35 gal)

EZ-Install TPE – 5.4 L (1.43 gal)

Full-Stroke PTFE – 5.0 L (1.32 gal)

Full-Stroke PTFE (Ductile Iron) – 4.8 L (1.26 gal)

^* 1 cycle = 2 strokes
