51 mm (2") Pro-Flo® SHIFT Series Bolted Metal AODD Pump,Pro-Flo® SHIFT Series AODD Pumps,allaoddpumps

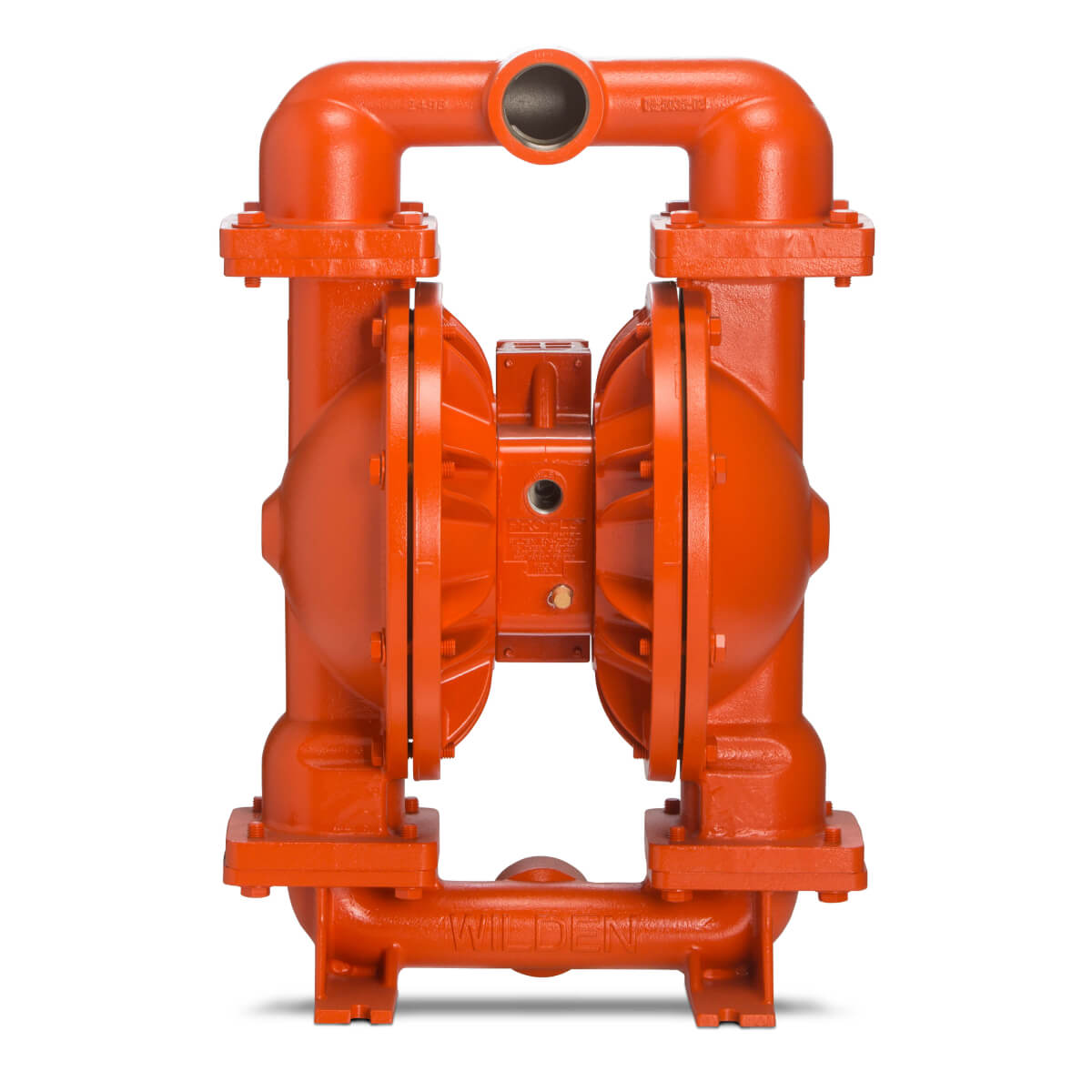

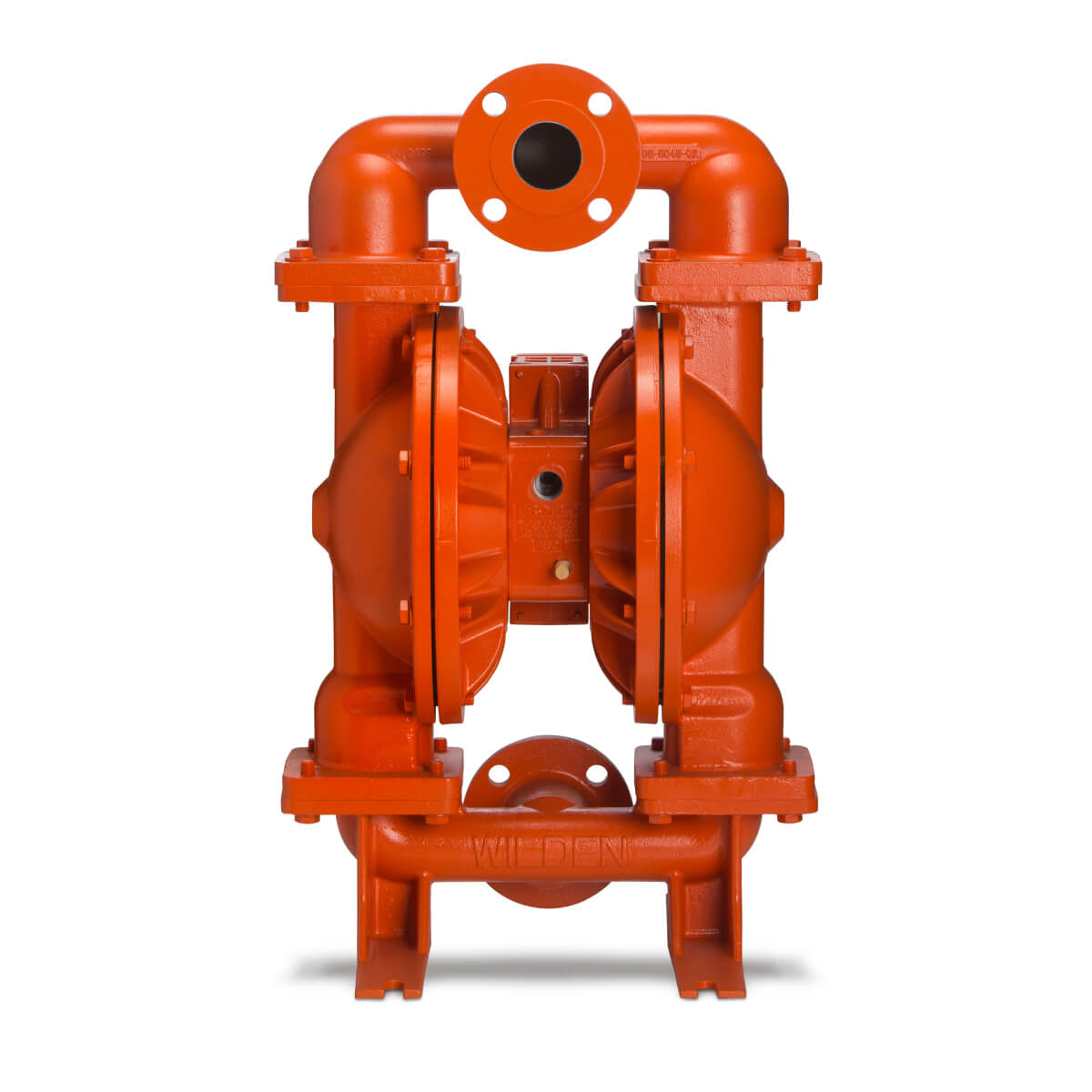

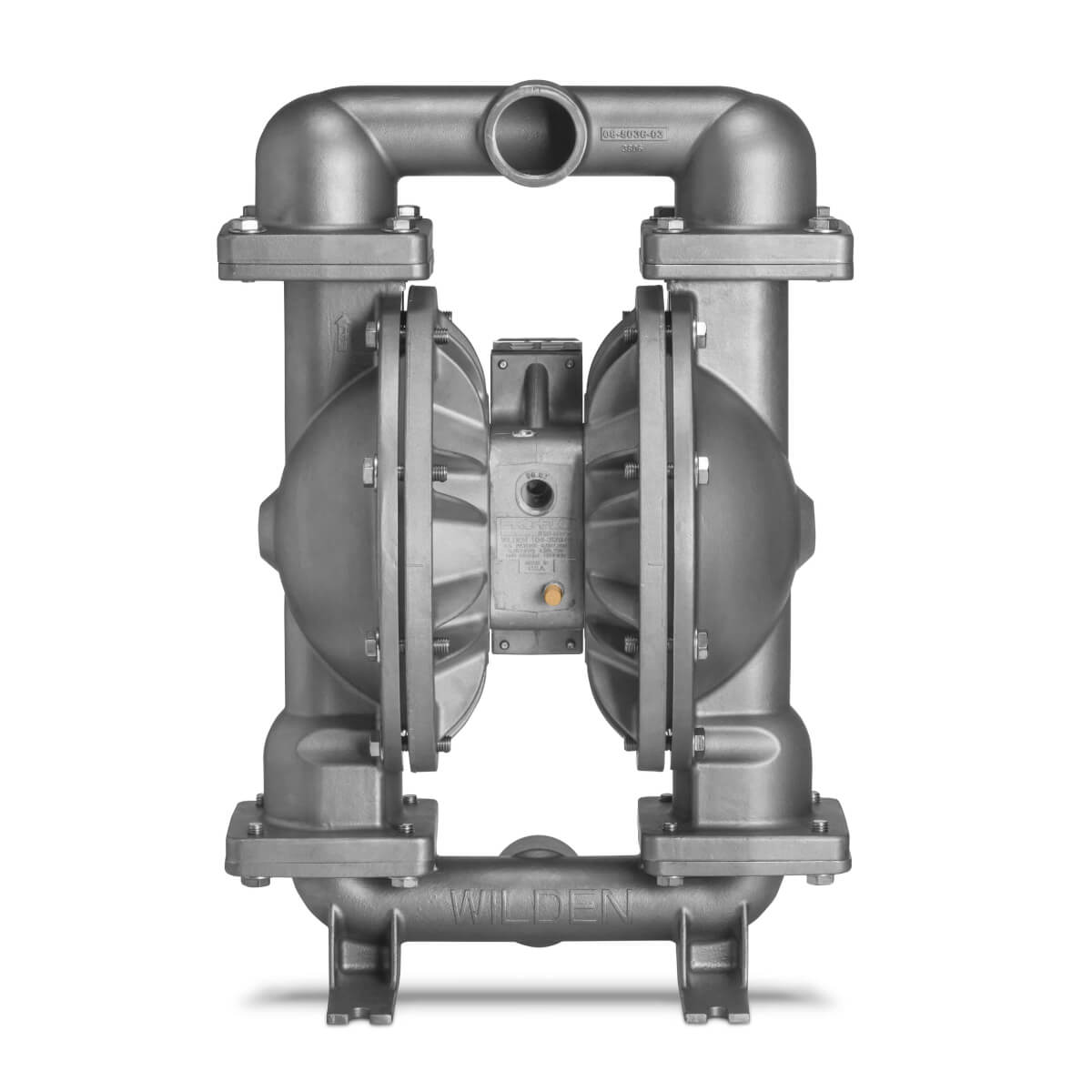

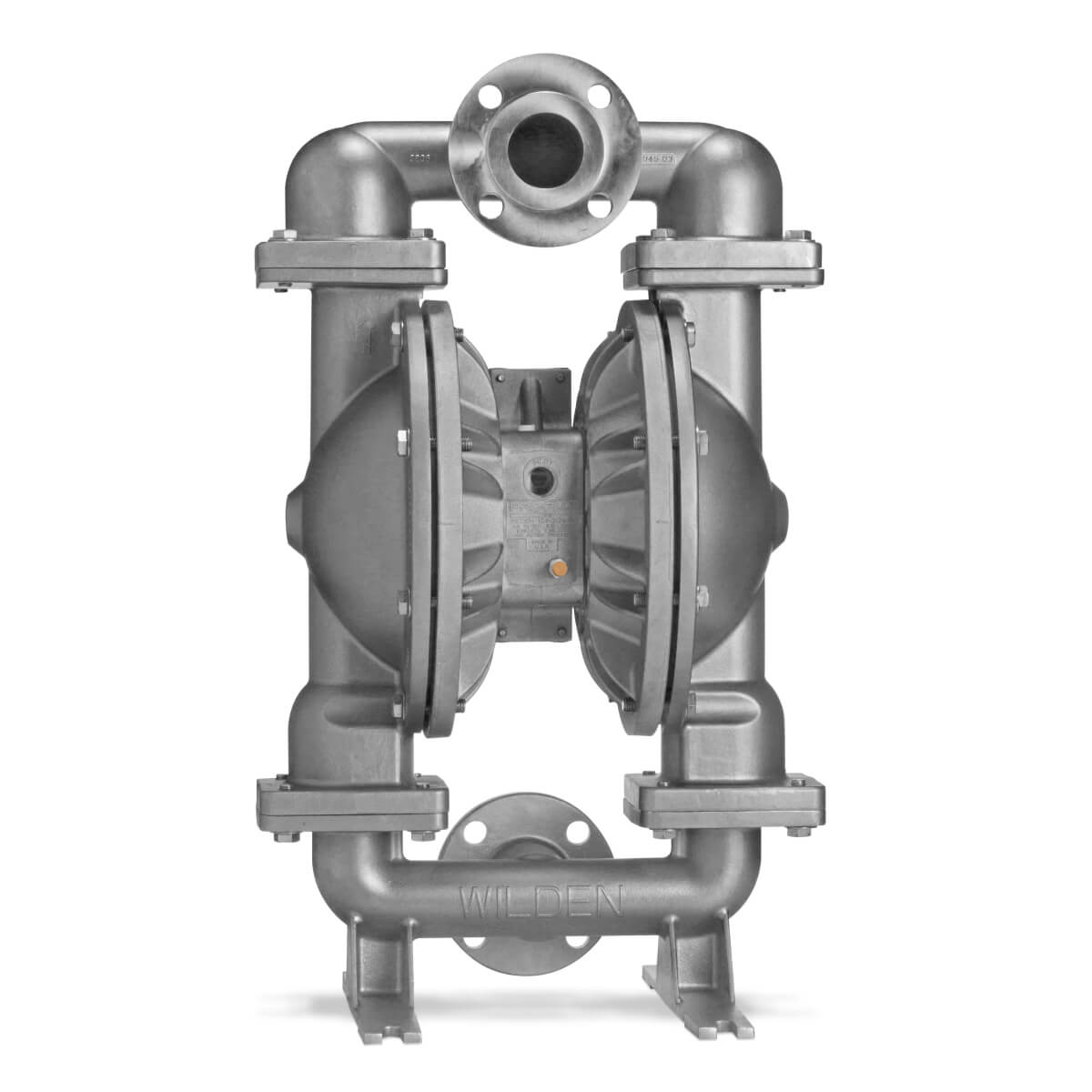

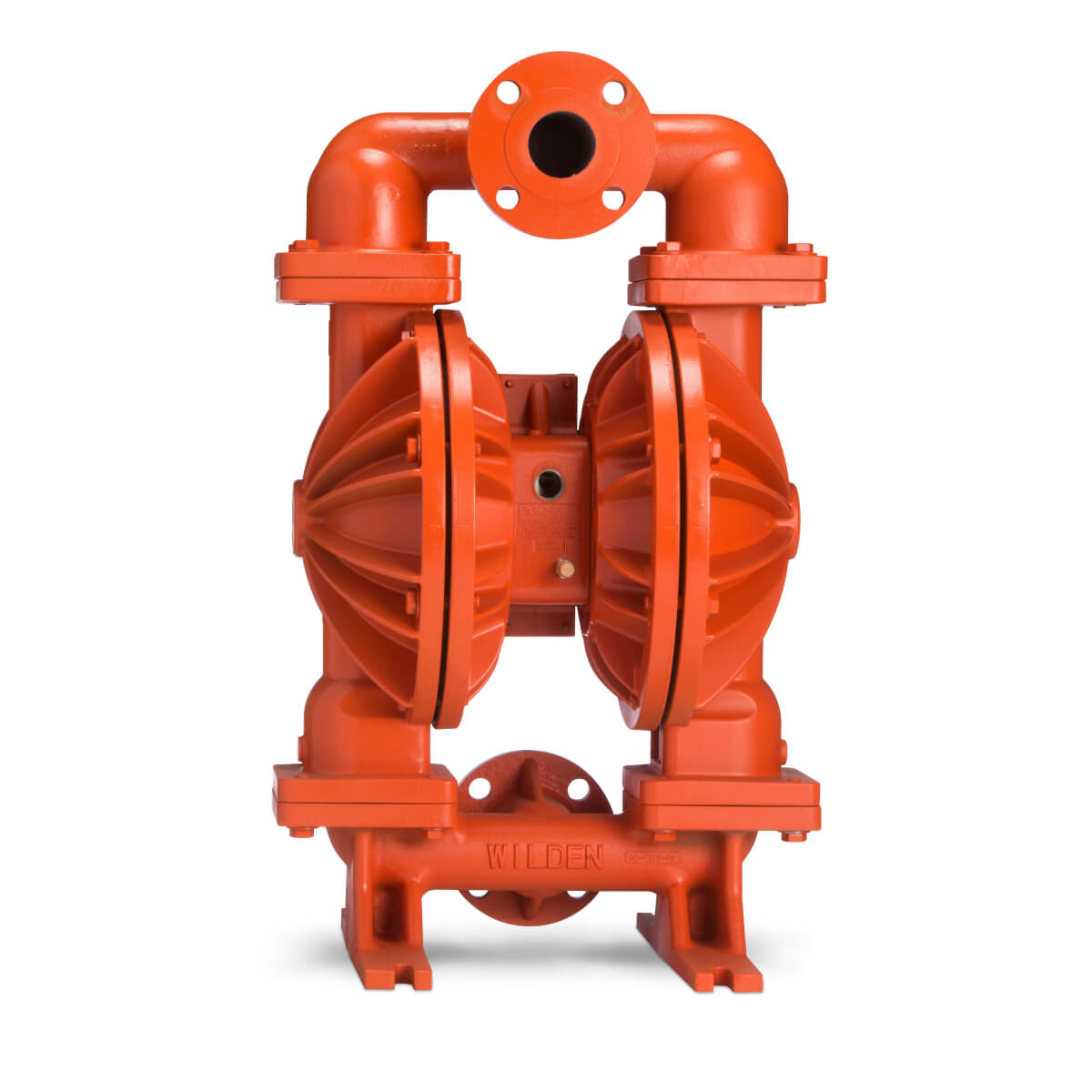

51 mm (2") Pro-Flo® SHIFT Series Bolted Metal AODD Pump
PS820/PS830

AIR INLET

3/4" FNPT

LIQUID INLET

51 mm (2")

LIQUID DISCHARGE

51 mm (2")

CONNECTION TYPE

NPT/BSPT (Threaded)

DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY

Rubber – 7.1 m (23.3') Dry, 9.0 m (29.5') Wet

EZ-Install TPE – 7.0 m (23.1') Dry, 9.0 m (29.5') Wet

Full-Stroke PTFE – 6.6 m (21.8') Dry, 9.0 m (29.5') Wet

MAX FLOW RATE

Rubber – 685 lpm (181 gpm)

EZ-Install TPE – 668 lpm (176 gpm)

Full-Stroke PTFE – 655 lpm (173 gpm)

MAX PRESSURE

8.6 bar (125 psi)

MAX DIAMETER SOLIDS

6.4 mm (1/4")

DISPLACEMENT PER STROKE *

Rubber – 2.8 L (0.73 gal)

EZ-Install TPE – 2.6 L (0.70 gal)

Full-Stroke PTFE – 2.5 L (0.65 gal)

^* 1 cycle = 2 strokes
