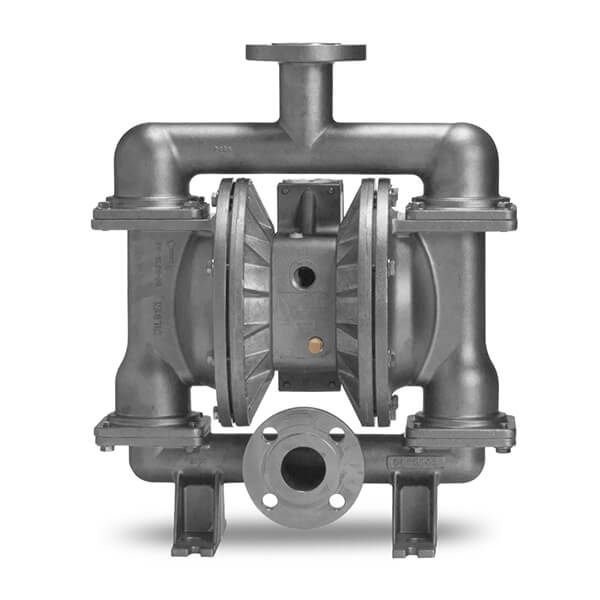

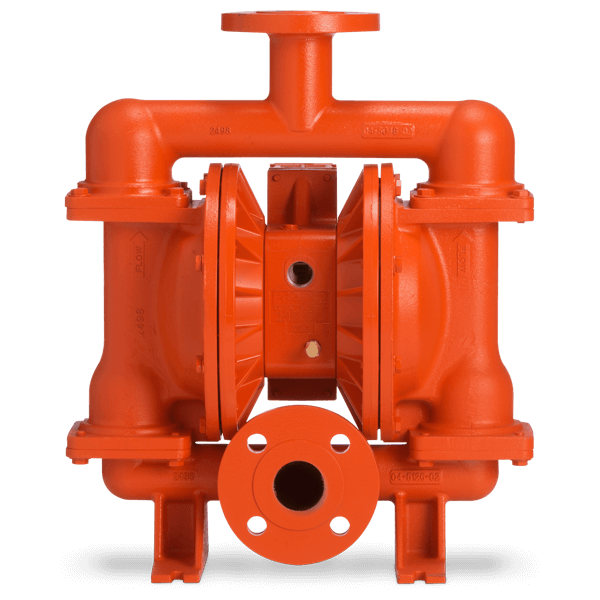

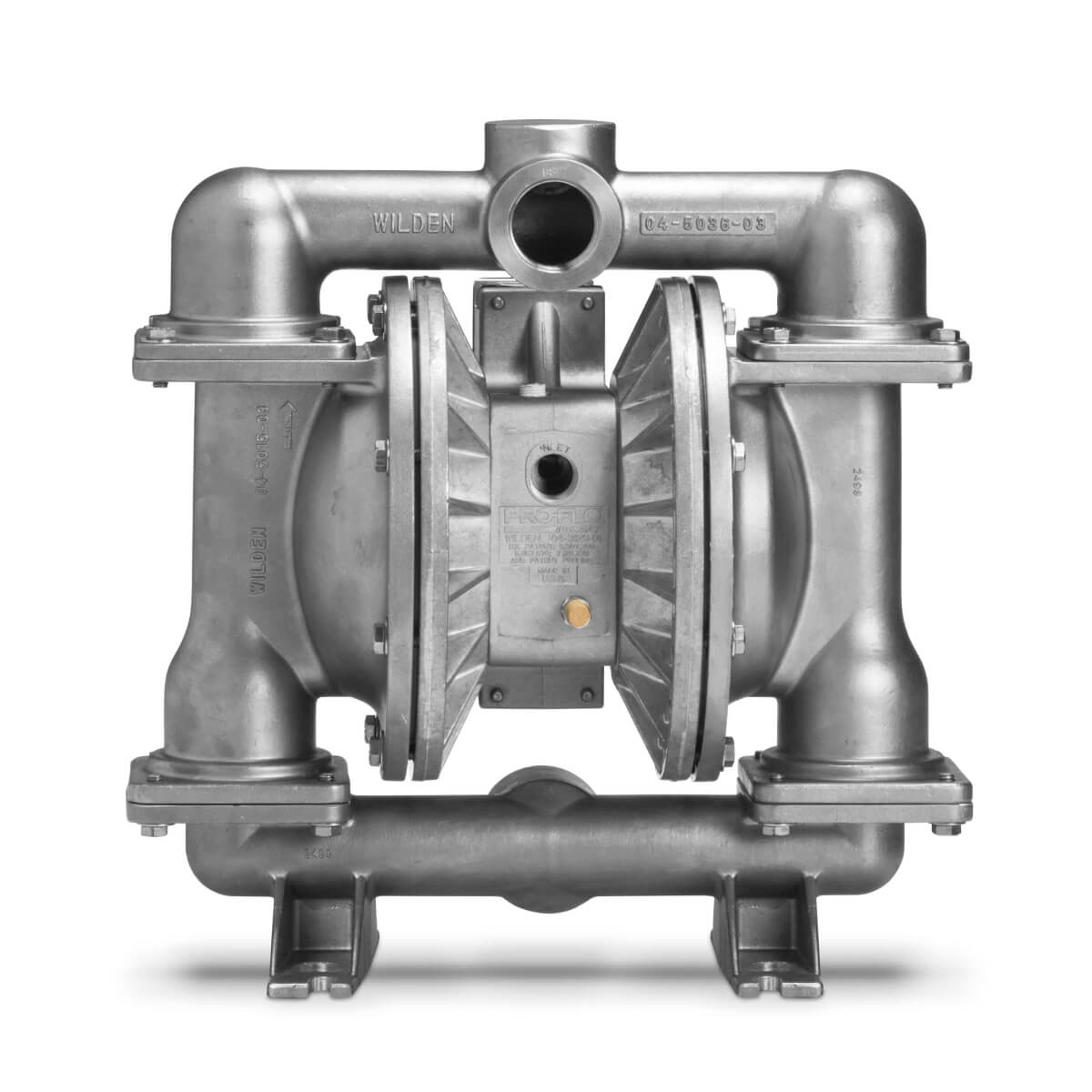

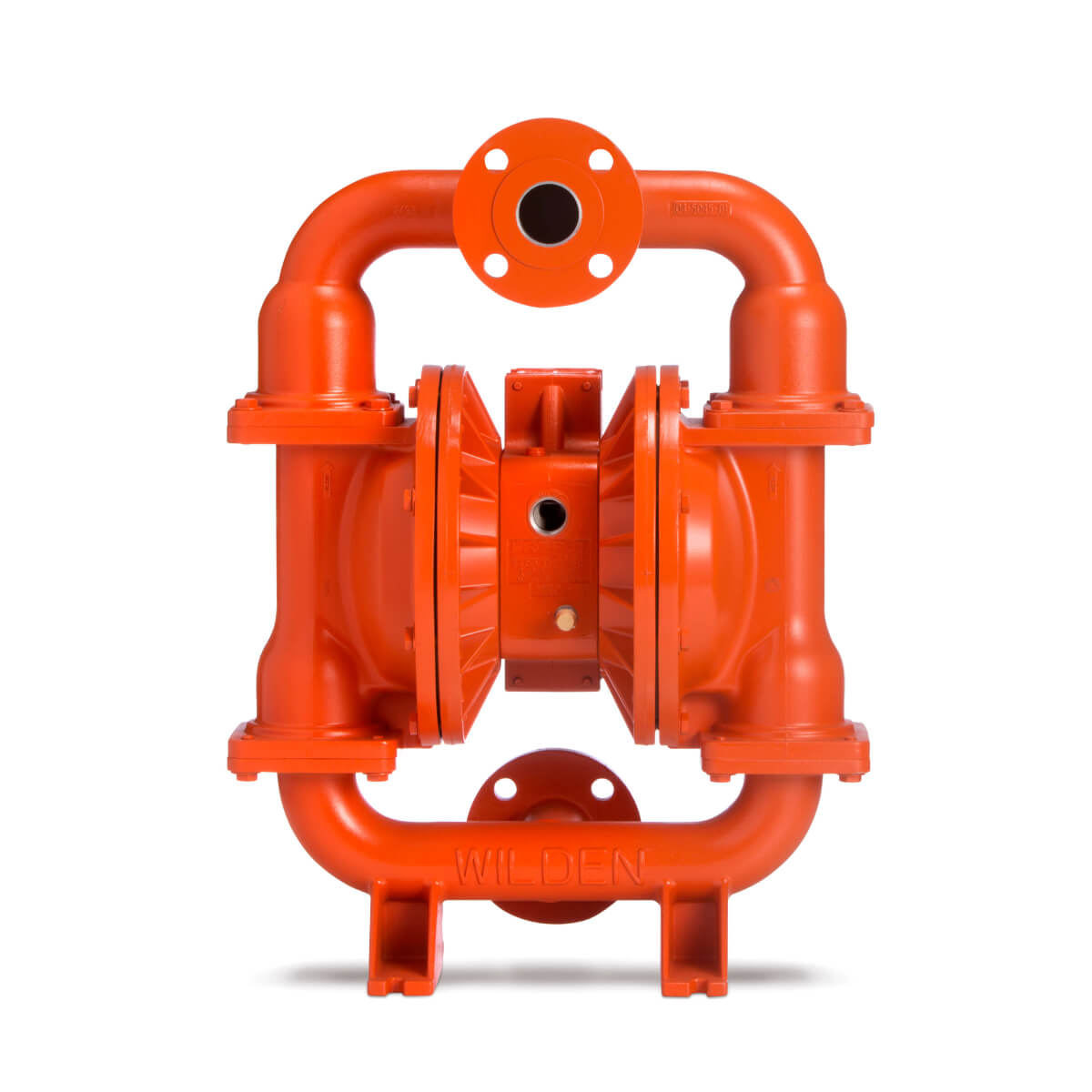

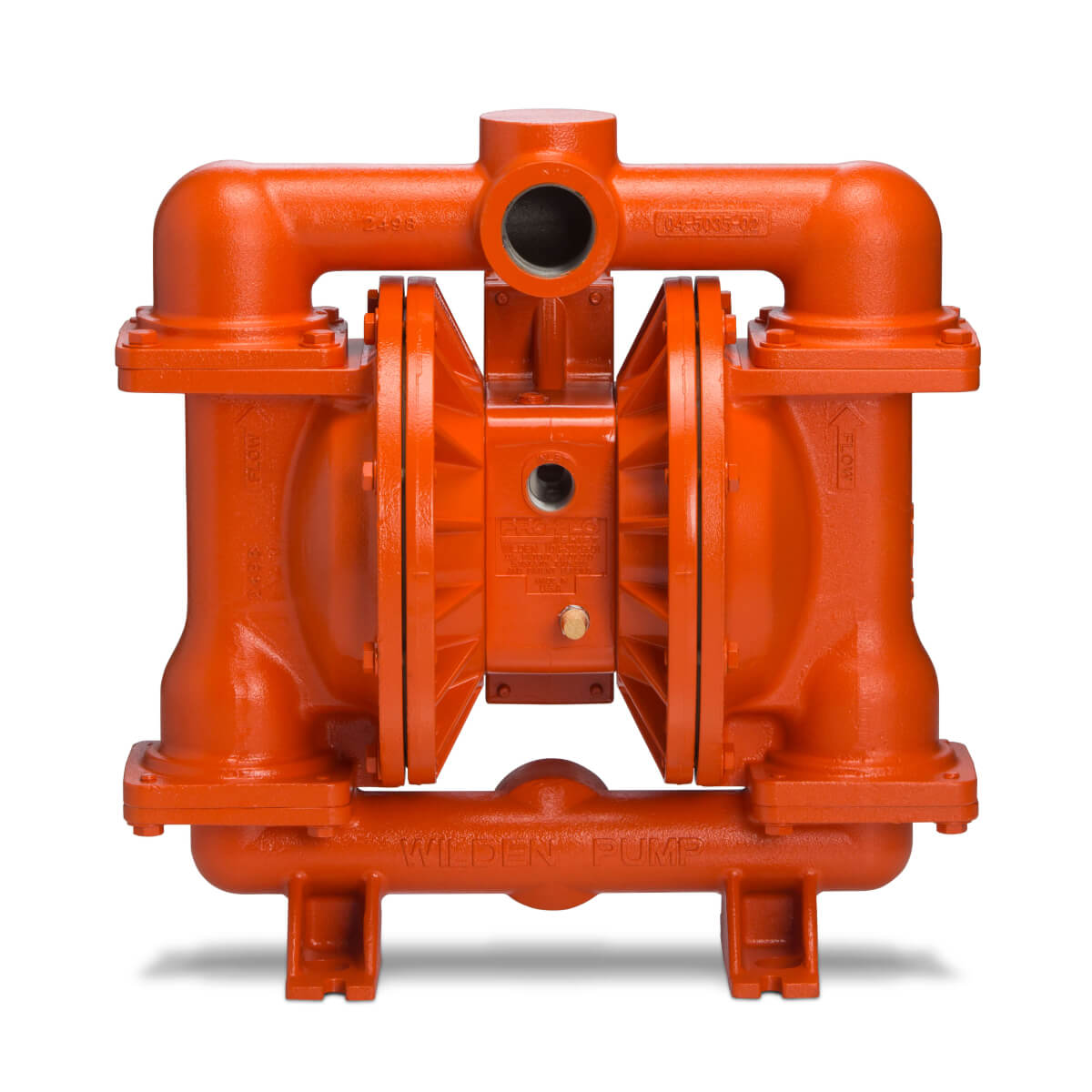

38 mm (1-1/2") Pro-Flo® SHIFT Series Bolted Metal AODD Pump
PS420/PS430

AIR INLET

3/4" FNPT

LIQUID INLET

38 mm (1-1/2")

LIQUID DISCHARGE

38 mm (1-1/2")

CONNECTION TYPE

NPT/BSPT (Threaded)

DIN/ANSI (Flanged)

MAX SUCTION LIFT CAPABILITY

Rubber – 5.9 m (19.5') Dry, 9.0 m (29.5') Wet

EZ-Install TPE – 6.2 m (20.4') Dry, 9.0 m (29.5') Wet

Full-Stroke PTFE – 5.5 m (17.9') Dry, 9.3 m (30.6') Wet

MAX FLOW RATE

Rubber – 500 lpm (132 gpm)

EZ-Install TPE – 510 lpm (135 gpm)

Full-Stroke PTFE – 485 lpm (128 gpm)

MAX PRESSURE

8.6 bar (125 psi)

MAX DIAMETER SOLIDS

6.4 mm (1/4")

DISPLACEMENT PER STROKE *

Rubber – 1.1 L (0.30 gal)

EZ-Install TPE – 1.1 L (0.30 gal)

Full-Stroke PTFE – 1.1 L (0.30 gal)

^* 1 cycle = 2 strokes
