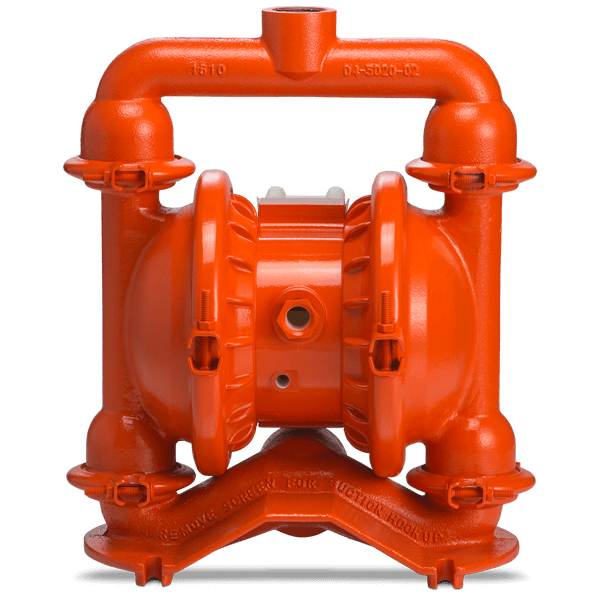

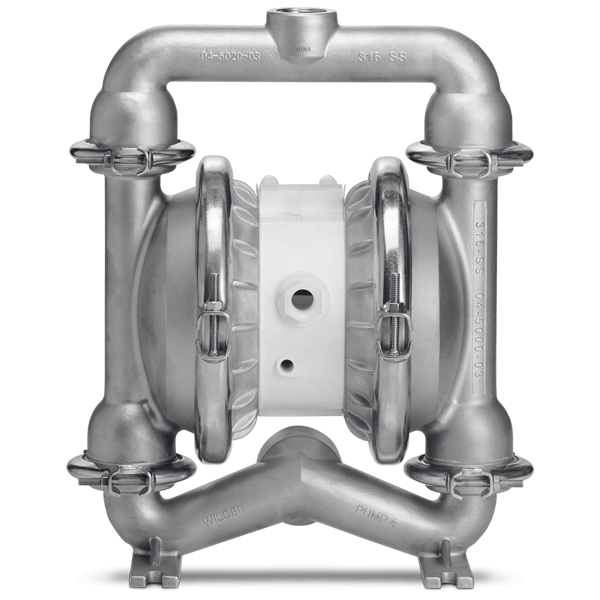

38 mm (1-1/2") Pro-Flo® Series Clamped Metal AODD Pump
P4

AIR INLET

1/2" FNPT

LIQUID INLET

32 mm (1-1/4")

LIQUID DISCHARGE

32 mm (1-1/4")

CONNECTION TYPE

NPT/BSPT (Threaded)

MAX SUCTION LIFT CAPABILITY

Rubber – 5.8 m (19.0') Dry, 8.0 (26.0') Wet

TPE – 5.2 m (17.0') Dry, 8.8 m (29.0') Wet

Full-Stroke PTFE – 6.4 m (21.0') Dry, 9.3 m (30.6') Wet

Reduced-Stroke PTFE – 3.7 m (12') Dry, 8.5 m (28') Wet

Ultra-Flex™ – 5.2 m (17.0') Dry, 8.5 m (28.0') Wet

MAX FLOW RATE

Rubber – 288 lpm (76 gpm)

TPE – 307 lpm (81 gpm)

Full-Stroke PTFE – 330 lpm (87.2 gpm)

Reduced-Stroke PTFE – 295 lpm (78 gpm)

Ultra-Flex™ – 269 lpm (71 gpm)

MAX PRESSURE

8.6 bar (125 psi)

MAX DIAMETER SOLIDS

4.8 mm (3/16'')

DISPLACEMENT PER STROKE *

Rubber – 0.98 L (0.26 gal)

TPE – 1.1 L (0.29 gal)

Full-Stroke PTFE – 1.1 L (0.29 gal)

Reduced-Stroke PTFE – 0.53 L (0.14 gal)

Ultra-Flex™ – .76 L (0.20 gal)

^* 1 cycle = 2 strokes
